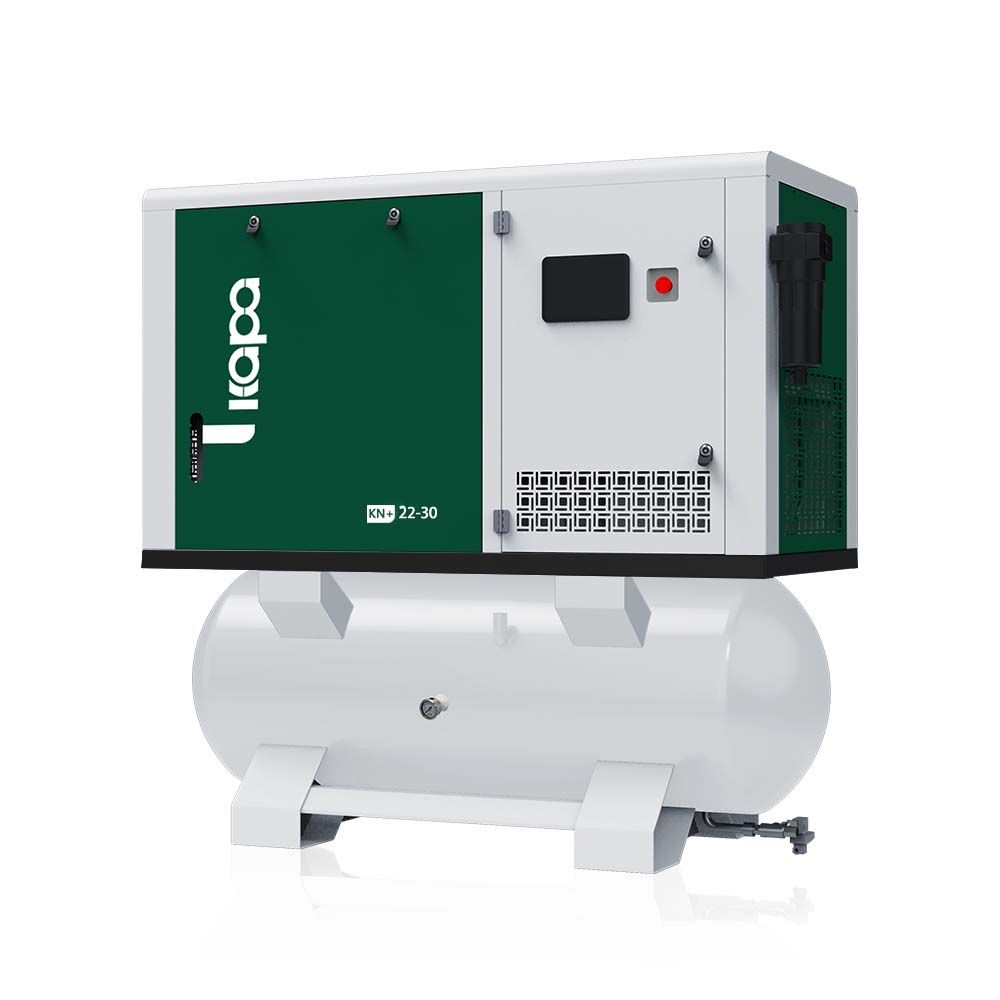

4 in 1 integratea air compressor for laser catter 22kw-30kw
A. Professional design by our engineers originally from Sullair
B. Better stability and reliability with higher efficiency
C. Low-speed design low-noise running , longer lifespan
D. Excellent air supply ability
E. Good sealing performance
F. Powerful fan cooling system
When compressed air is not adequately purified, it contains water mist and oil. Failing to address this issue can result in high-pressure spraying onto the mirror that protects the laser cutting head. Consequently, the transmission of the laser beam is significantly compromised, causing the focus to disperse and leading to wasteful product cuts.
01- Simultaneous Control on a Single Screen
Real-time monitoring of air quality; Display of internal and external pressures simultaneously, including the pressure of cold coal gas.
02- Pristine
Utilize a modular dryer for efficient water removal; Employ a four-level precision filter to achieve near-oil-free conditions.
03- Sturdy
Opt for a branded host with carefully selected characteristics such as low speed and micro-vibration; Ensure high gas volume and stability with heavy-duty bearings.
04- Serene
Measure the full-load running noise at 65 dB; Adapt to any noise requirements in the environment.
Advantages of Kapa Brand
Innovative technology for environmental protection. Kapa listens, comprehends, and fulfills customer needs. Our objective is to safeguard the environment, provide superior services and solutions, reduce costs for users, and explore significant growth opportunities. Our primary aim is to conserve energy, stimulate economic productivity, meet market demands, and minimize energy consumption and environmental pollution. Guided by the mission of "innovation embodies value," Kapa Company will continue to drive technological innovation and progress, achieve mutually beneficial outcomes with global partners, suppliers, and employees, create a new world of "energy-saving, environmental protection, intelligence, and service" in the field of aerodynamics, and strive to become a world-class enterprise adhering to the highest standards.
Advantages
1. Rigorous quality control (CE, SGS, ISO14001/Energy-saving certificate)
2. Swift delivery (25-30 days for large orders)
3. Exceptional pre-sale and after-sale service (robust technical support and a professional after-sales team)
4. Acceptance of small orders (order quantity based on actual needs)
Why Choose Us
Extended lifespan of the main machine
The rotor operates at a low speed with an asymmetrical line, supported by ball bearings and roller bearings. This design reduces damage and costs, while extending the service life of the machine. Additionally, the axial force generated
KPEN laser special series/16BAR
| Model | Nominal Power | Working Pressure | Free Air Delivery | Weight（KG） | Noise Level | Dimensions (LxWxH) | Outlet size | |||||
| 50Hz | KW | HP | bar | psi | m3/min | cfm | KG | db(A) | （mm） | |||
| KPEN22-25 | 22 | 30 | 25 | 363 | 1.7 | 60.03 | 598 | 72 | 1800 | 800 | 1680 | RP3/4 |
| KPEN30-25 | 30 | 40 | 25 | 363 | 2.3 | 81.22 | 605 | 72 | 1800 | 800 | 1680 | RP3/4 |
| KPEN37-25 | 37 | 50 | 25 | 363 | 3.2 | 113.01 | 850 | 74 | 1800 | 800 | 1680 | RP3/4 |
| KPEN22-30 | 22 | 30 | 30 | 435 | 1.6 | 56.50 | 598 | 72 | 1800 | 800 | 1680 | RP3/4 |
| KPEN30-30 | 30 | 40 | 30 | 435 | 2.1 | 74.16 | 605 | 72 | 1800 | 800 | 1680 | RP3/4 |
| KPEN37-30 | 37 | 50 | 30 | 435 | 3 | 105.94 | 850 | 74 | 1800 | 800 | 1680 | RP3/4 |
AIR COMPRESSOR MAINTENANCE
01
The air compressor shouldbe placed in a place withclean air and good ventilation.
02
The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.
03
Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.
04
When wiring, check whether thefan rotation direction is consistentwith the arrow direction.
ENERGY SAVING THCHNOLOGY
The starting power of the original system is 555kw,and the starting power of the new system is 320kw.
Power saving of 17000o kWh per month
The starting power of the original system is 240kW,and the starting power of the new system is 132kw.
Power saving of 54000 kWh per month
The starting power of the original system is 446kW,and the starting power of the new system is 325kW.
Power saving of 86000 kWh per month
The starting power of the original system is 690kw,and the starting power of the new system is 420kw.
Power saving of 260000 kWh per month
The starting power of the original system is 732kW,and the starting power of the new system is 50okw.
Power saving of 167000 kWh per month
The starting power of the original system is 430kw,and the starting power of the new system is 320kw.
Power saving of 79000 kWh per month
