A Complete Guide to Scroll Air Compressors

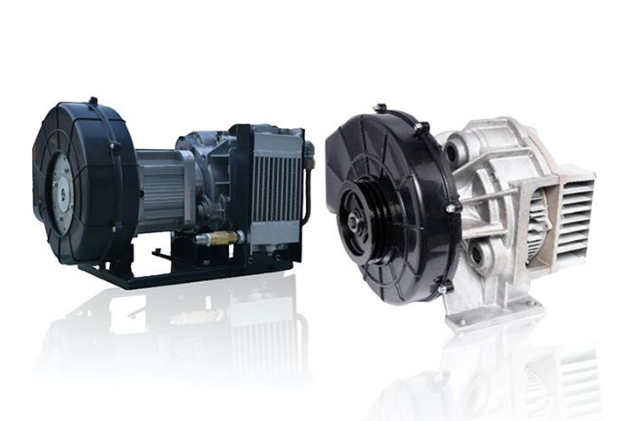

What Are Scroll Compressors?

A scroll compressor, also called a spiral compressor or scroll pump, is a type of positive-displacement compressor designed for compressing air or gas. It operates by using a spiral mechanism for internal compression. Scroll compressors are available in both oil-lubricated and oil-free models. Oil-free scroll compressors are ideal for applications requiring clean, dry air without any risk of oil contamination in the compression chamber.

How Do Scroll Air Compressors Work?

A scroll air compressor is a type of compressor that uses two interlocking, spiral-shaped scrolls to compress air or gas. It consists of a stationary scroll and an orbiting scroll. The orbiting scroll moves in a circular motion around the stationary scroll, creating pockets of air or gas between the two. These pockets are gradually compressed as they are pushed toward the center of the spiral, where the space between the scrolls is smallest.

As the pockets move inward, the pressure increases, and the compressed air or gas is discharged from the center. The compressed output can then be stored in a tank or used directly for various applications.

Scroll air compressors offer several advantages. Their design eliminates the need for pistons, minimizing vibration and noise during operation. With fewer moving parts than traditional compressors, they are also less prone to mechanical failure. Additionally, their energy-efficient design ensures minimal energy loss during compression, making them a cost-effective option for producing compressed air or gas.

Scroll compressors utilize two interlocking spiral-shaped elements: a stationary scroll and an orbiting scroll driven by a motor. The air compression process in a scroll compressor unfolds as follows:

1. Oscillation: The scrolls move in a continuous, oscillating motion without metal-to-metal contact, compressing air within crescent-shaped pockets.

2. Orbiting Motion: The orbiting scroll, powered by a short-stroke crankshaft, moves eccentrically around the fixed scroll, creating suction that draws air from the inlet at the top of the housing.

3. Compression: As air is captured in the pockets between the scrolls, it is progressively compressed toward the center.

4. Discharge: The compressed air exits through the outlet port at the center, where a non-return valve prevents backflow.

5. Stability: A 180° phase displacement ensures radial stability, while internal compression reduces leakage by minimizing pressure differences between the air pockets.

Thanks to these features, scroll air compressors are ideal for applications in industries such as manufacturing, construction, and automotive, where reliable and efficient performance is essential.

Explanation of Parts

- Cooling Fan: Dissipates heat generated during compression, ensuring efficient operation and preventing overheating.

- Suction Chamber: The section where air or gas is initially drawn into the compressor.

- Suction Opening: The inlet through which air or gas enters the suction chamber.

- Delivery Opening: The outlet from which compressed air or gas is discharged.

- Fixed Scroll: The stationary spiral component that helps form the compression chamber.

- Orbiting Scroll: The moving spiral component driven by a motor, responsible for compressing air through its orbital motion around the fixed scroll.

- Fail-Safe Temperature Sensor: A protective feature that monitors the compressor's temperature to prevent overheating and potential damage.

- Compression Chamber: The space between the fixed and orbiting scrolls where air is compressed as the orbiting scroll moves.

Scroll Compressors: Advantages and Disadvantages

Scroll compressors stand out for their simple design, featuring only one moving part, which enhances reliability and reduces noise levels compared to piston and rotary screw compressors. This makes them an excellent choice for noise-sensitive environments, such as dental offices. Additionally, scroll compressors are known for their energy efficiency.

Advantages:

- High Efficiency: Consumes less energy, reducing operational costs.

- Quiet Operation: Produces minimal noise, ideal for quiet environments.

- Compact Design: Space-efficient and easy to install in tight spaces.

Disadvantages:

- Higher Initial Cost: More expensive upfront compared to other compressor types.

- Capacity Limitations: Unsuitable for applications requiring high output or capacity.

Efficiency

Scroll compressors achieve exceptional efficiency, comparable to internal compression in screw compressors, with the level of compression determined by the discharge port's design. The unique design of the discharge port allows the scroll compressor to compress more air or gas with minimal energy consumption.

Unlike compressors with pistons, scroll compressors operate without these additional moving parts, achieving the highest efficiency levels by volume.

Noise

Scroll compressors are remarkably quieter than other compressor types. The complete compression cycle—encompassing suction, compression, and discharge—takes just 2.5 turns, with all phases occurring simultaneously. This ensures a constant, pulsation-free flow of air.

Thanks to the scroll element, these compressors deliver smooth, vibration-free performance. With minimal torque variation compared to piston compressors and only one moving part in their design, scroll compressors are not only quieter but also highly reliable and low-maintenance.

Scroll Compressor Applications and Uses

Scroll compressors are valued for their efficiency and reliability, making them a versatile choice across various industries. They meet the requirements of general-purpose compressors and excel in sectors such as food processing, refrigeration, air conditioning, and transportation. For higher-volume applications, however, oil-injected screw compressors may offer greater efficiency.

Typical Applications:

- Laboratories & Research:

Used for instrument calibration, sample analysis, and maintaining environmental control in cleanrooms.

- Medical & Healthcare:

Provide clean, oil-free air for ventilators, incubators, surgical tools, and patient breathing support during surgeries.

- Food & Beverage:

Support food packaging, vacuum sealing, meat processing, and beverage carbonation processes.

- Electronics:

Essential for precision assembly by cleaning parts, maintaining cleanroom conditions, and preventing moisture and corrosion.
