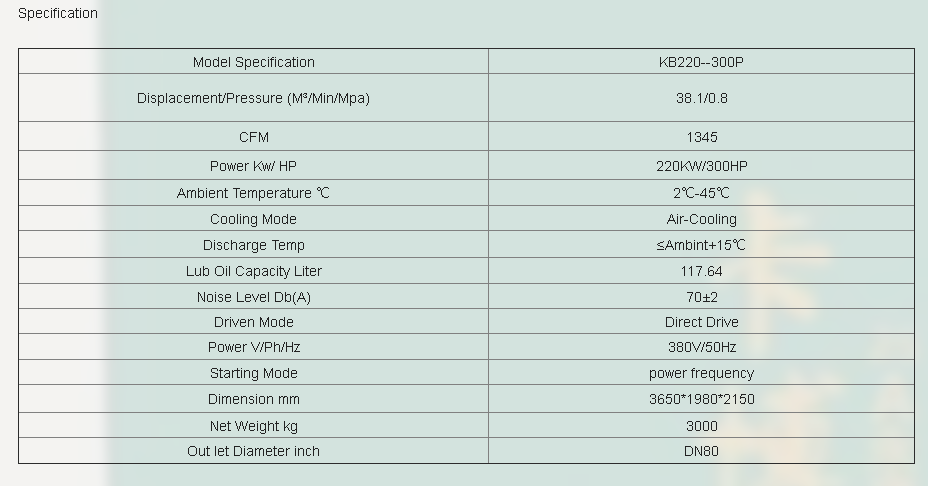

38.1m³ / min High efficiency Mute Screw Air Compressor 220kw 300hp 0.8 Mpa

What is Mute Screw Air Compressor？

A "Mute Screw Air Compressor" refers to a type of screw air compressor that is designed to operate quietly or with reduced noise levels compared to standard screw air compressors. These compressors typically incorporate noise-reduction features such as sound-dampening enclosures, vibration isolation mounts, and advanced noise-reducing technology in their design. The aim is to minimize noise emissions during operation, making them suitable for environments where noise pollution is a concern, such as offices, hospitals, laboratories, and residential areas. Mute screw air compressors offer the advantage of providing compressed air without causing significant disturbance to surrounding activities or occupants.

Advantages of screw air compressor

A-Remarkable Screw Air Compressor end: Germany original-building GHH_RAND air end adopts the third-generator dissymmetrical gear shape. The main rotor is five gears and the vice rotor is six gears.

B-As to differences between them is small, the loss of circumfluence is small which increases the cubage efficiency by close to 20% and save the electric currency by about 25% compared to normal

screw air compressor.

C-The rotor is dissymmetrical shape, supported by ball bearing and rod bead bearing and operating at a low speed so it can lower the maintenance cost and provide the air end with a longer service life.

D-Gas Intake valve: The ac compressor Controlled by computer, the stable and dependable air displacement air inlet control valve can make the air displacement and power consumption of the motor change along with the air consumption, so as to save energy and electricity, and reduce the operating cost.

E-Oil and gas separator: Screw air compressor shaped design of oil and gas separator is easy to uninstall and change. Separator core can separate the left oil in the process of compressing air.2ppm. this will increase the cleanness of the compressed air and lower the pollution to the compressed air and lower the pollution to the compressed air and equipment.

F-Oil filters of ac compressor: High efficient oil separator can remove the impurity from the lubricant and provide clean lubricant for the pump, rotor and bearing.

G-Motor of the screw air compressor: Famous brand motor with F class isolation and IP54 protecting class. It uses imported SKF durable bearing and can be operated all day long.

Green Power, Maximum Efficiency - KAPA's Energy-Efficient Air Compressors, Setting the Standard for Environmental Responsibility.Please contact us!

Our services

Pre-sales service

Inquiry and consulting support.

Samples testing support.

View our Factory.

Advantages of Kapa Brand

1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)

2. Fast Delivery( 10-15 days for large orders)

3. Good service for pre-sale, after-sale( strong technical support and professional after-sales team)

4. Small order acceptable( Ordering quantity according to your actual needs)

Why Choose Us?

Longer service life of the master machine

The rotor uses asymmetrical line running at a low speed with the support of the ball bearings and roller bearings as a result. The damage and the cost are lowered and the service life is extended. Some force is counteracted by the axial force generated by the bevel gear. So the load on the bearings of the master machine is lowered.

Permanent alignment of the electromotor and the master machine

Different from the strap compressor, the SRC series compressor can integrate the electromotor with flange, shaft coupling box-gear box. and the master machine into one in such way the master machine and the electrometer are aligned forever in the transpiration. The SRC series compressors equipped with effective and fully sealed air-cooling electromotor.
